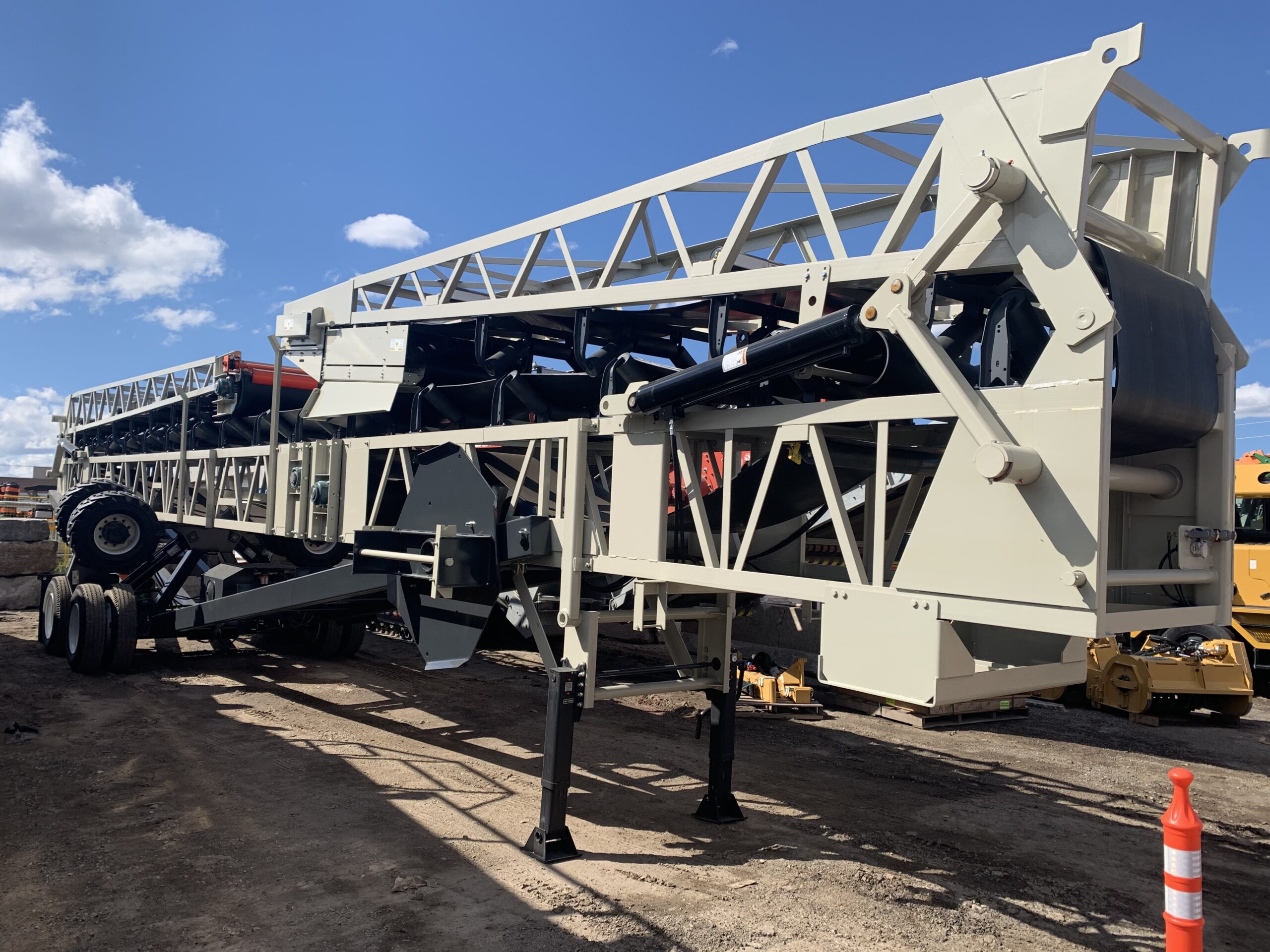

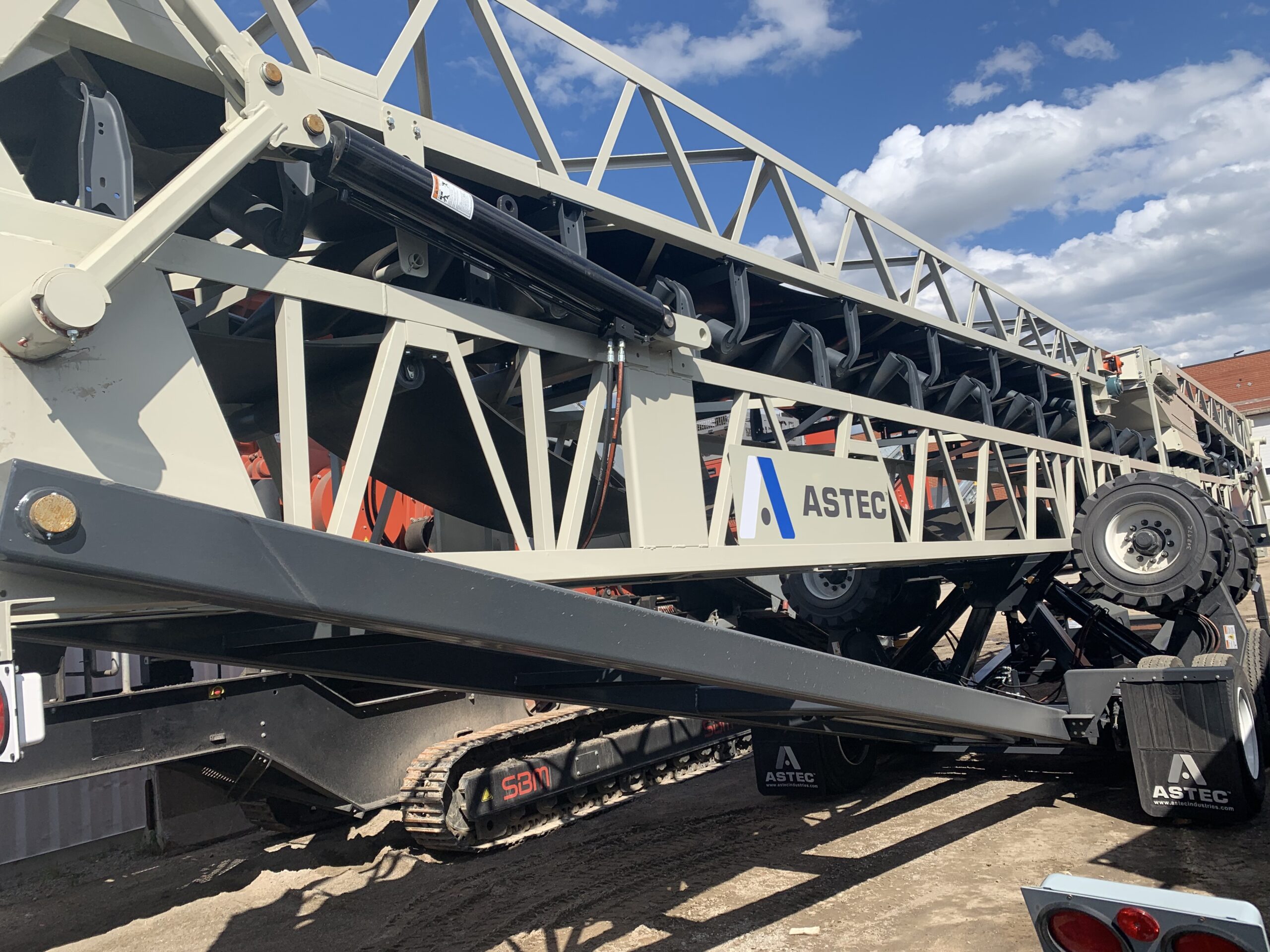

2024 Astec (KPI) Series 13 36″ x 125′ Portable Stacking Conveyor

Now at Amaco is a NEW Astec 2024 Series 13 36″ x 125′ Portable Stacking Conveyor, complete with all standard equipment, including 575V power, Belt Cleaner – Martin with tensioner, Rock Box Hopper, AR Liner – ¼” (6 mm) AR 400 for radial hopper and receiving trough, Anchor Pivot – for radial travel,
7 1/2 HP (5.5 kW) Electric / Hydraulic Power Pack, Undercarriage Lift Cylinder (power not included), Pintle Hitch – bolt on design, CEMA “C” vs. B Idlers – 5″ (127 mm) diameter, steel roll, sealed for life ball bearings, Impact Idlers (3) – 20 deg. rubberimpact idlers in loading area, Hydraulic Top Fold – head and tail (includes hinged splice, power not included belt and idlers are factory installed with this option), Gullwing Axle Option – Walking beam travel axle with (8) 11.0 x 22.5 tires and fold-up
radial axle assembly with (4) 385/65D-19.5 tires on hydraulic outriggers. Brakes, travel lights & mud
flaps included with gull wing axle. Power travel and power pack not included, Hydraulic Planetary Wheel Drive for gull wing axle option – Two-wheel drive, Landing Gear – 2-speed, hand crank type, Drive Upgrade – 50 HP (37 kW) motor. Hydraulic tank heater, Dodge TA6307 reducer, 24″ (610 mm) drive
pulley, Vulcanized Belt Splice.
